SPECIFICATIONS :



Merk : MKCELLS



Type : MK-LU

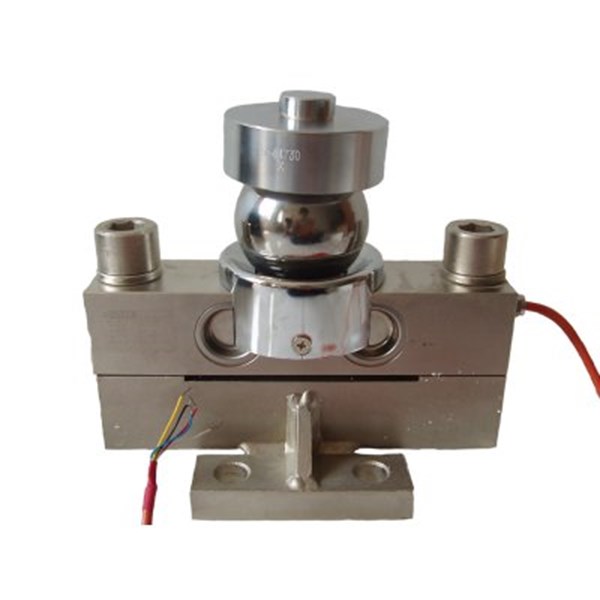

Model : Double Ended Beam



Rated Capacities 10, 15, 20/25, 30, 40t Temperature Effect Sensitivity ± 0.02% FS/10°C

Rated Output 20000, 25000, 30000, 40000 Temperature, Operating -30°C ~ +70°C

Total Error ± 0.02% FS Maximum Safe Overload 150% FS

Creep Error (30 min) ± 0.02% FS Excitation, Recommended 9 ~ 12V DC

Zero Balance ± 0.1% FS Excitation, Maximum 20V DC

Communication Baud Rate 9600 BPS Protection Class 1P68

Date Refresh Frequency 50 Hz Max Signal Transmission Distance 1200m

Input Resistance 400 ± 10W

Output Resistance 352 ± 3W

Insulation Resistance ≥ 5000MW

FEATURES : MKCELLS MK-LU



High precision, reliability and super stability Design of stainless steel ball, cup has functions in self-restoring corner pre-adjustment

Anti-wallop and anti side force Easy to installation good interchangebility

5 core high quality orange cable Application to truck scale, railway scale hopper scale and other weighing equipment

Kami PASTI MEMBERIKAN DISCOUNT & GARANSI.

BUKTIKAN !!!!!!!!!!!!!!!!!!!!!!!!!!!!





Kami melayani Penjualan timbangan Mekanik, Digital, Service, Kalibrasi,Tera,Tera Ulang dari Dinas Metrologi (Sertifikasi) berbagai Merk Timbangan dari Jembatan Timbang sampai Analytical.



Produk kami berupa timbangan Mekanik, Timbangan Digital mulai dari analytical balances s/d Truck scale, Sparepart, Indicator, Load cell, Accesories timbangan, Batu Timbangan / Batu standart & Timbangan Lainnya.





Untuk memenuhi kebutuhan dan menemukan solusi timbangan anda segera hubungi kami :

CV.GARUDA MAS JAYA

Jl.Pedongkelan Belakang No.09B Cengkareng JAKARTA BARAT 11720

Nomer HP:

0813.8031.4948  WA

0878.0433.9042  WA

Nomer Telpon:

021.2902.4484

Nomer Faks:

021.29024484

E-mail  : cvgmj123@yahoo.com
