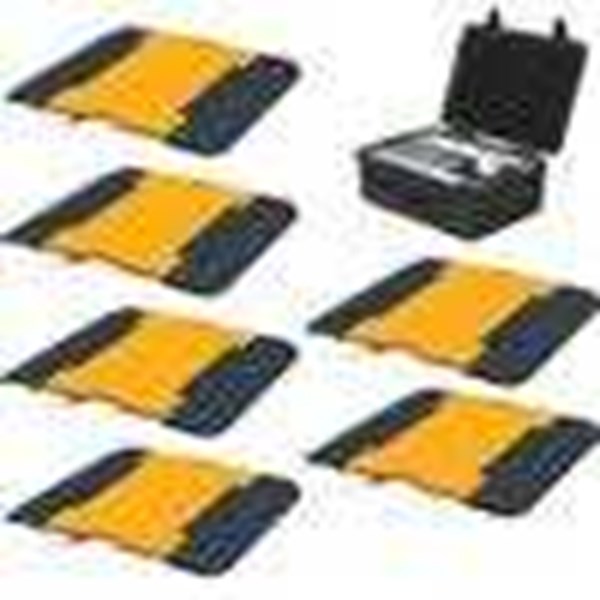

Truck Portable Axle RW-P Series - MURAH

Harga :

CALL

Pembelian Minimal :

1 Unit

Lokasi :

DKI Jakarta - Jakarta Barat

Dilihat :

217 Kali

Update Terakhir :

26-08-2019 13:34

Detail Produk

Wireless Transmission distance : 25 meters Inner re-charge battery, can work continuously 20 hours Material Aluminum-alloy, Light-weighted Ultra thin weigh pad design, portable Ramp slope can be mounted or un mounted Larger weigh-pad size to suit different vehicles Static and dynamic test Dynamic comprehensive error ( % F.S) : ± 5% ( 5km/ h) Static comprehensive error( % F.S) : 0.3 – 0.5% Print test automatically Application : pplied in lawful check of weight by road transport safety check Applied in reliability tests of some special vehicles Not applied for commercial using

SPECIFICATIONS :

CAPACITY : 5T / 10T / 15T / 20T

EACH PAD STATIC COMPREHENSIVE ERROR ( % F.S) : 0.3 ~ 0.5

ConNECTION WAY WEIGH PAD TO INDICATOR :

WIRELESS DYNAMICCOMPREHENSIVE ERROR ( ( % F.S) : 3 ~ 5

INSULATION RESISTANCE ( M ) : > = 1000 ( 100VDC)

RATED OUTPUT ( mV / V) : 0.7mV / V

COMPENSATED TEMP. RANGE ( oC) : -10~ + 60

NON-LINEARITY ( % F.S) : < 0.3

USE TEMP. RANGE ( oC) : -20~ + 50

ERROR ON CORNERS ( ( % F.S) : 0.2

TEMP. EFFECT ON ZERO ( F.S/ 10oC) : 0.05

REPEATABILITY ( % F.S) : 0.05

TEMP. EFFECT ON SPAN ( F.S/ 10oC) : 0.05

ZERO BALANCE ( % F.S) : < = ± 1

SAFE OVERLOAD ( % ) : 120

EXCITATION VOLTAGE ( VDC) : 9 ~ 15

ULTIMATE OVERLOAD ( % ) : 150

RECOMMENDED VOLTAGE ( V) : 10

DEFEND GRADE : IP67

Kami perusahaan yang bergerak dibidang penjualan, jasa Service, Kalibrasi, Tera, Tera Ulang oleh dinas metrologi( Sertifikasi) Berbagai merk timbangan

Produk kami berupa timbangan Mekanik, Elektronik mulai dari analytical balances s/d Truck scale,Spearpart,Accesories Timbangan dan Batu Timbangan

Untuk memenuhi kebutuhan dan menemukan solusi timbangan anda segera hubungi kami :

CV.GARUDA MAS JAYA

Nomer HP:

0813.8031.4948 WA

0878.0433.9042 WA

0856.9751.1813

Nomer Telpon:

021.29024484

Nomer Faks:

021.29024484

Pin BB : D03F1935

E-mail: cvgmj123@yahoo.com

Kami PASTI memberikan DISCOUNT dan GARANSI.

BUKTIKAN ! ! ! ! ! ! !
