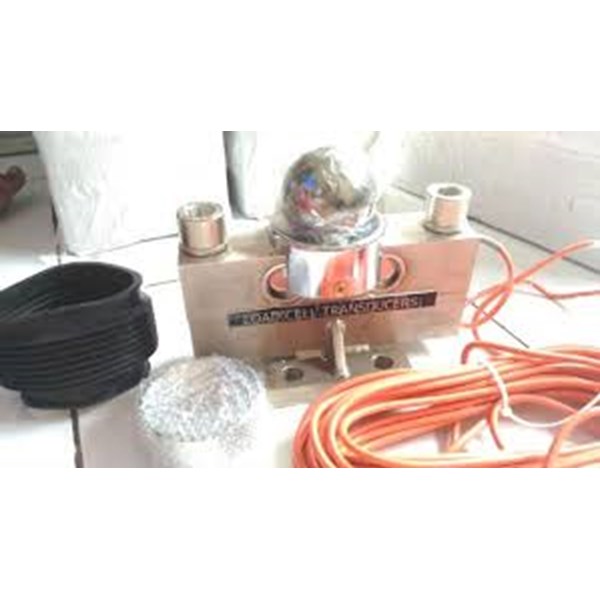

Load Cell MKCELLS QS Double Ended Beam
Merk : MK-Cells
Type : QS
Capacity : 25Ton & 30ton
Feature :
- High presicision, reliability and super stability
- Design of stainless steel ball, cup has super function in self-restoring corner pre-adjustment
- Anti-wallop and side force
- 5 core high quality orange cable
- Application to truck scale, railway scale hopper scale and other weighing equipment
Spesification :
- Rated capacities (Emax) : 50t
- Rated output : 2.0±0.002mV/V
- Accuracy class : C3
- Zero balance : ±1%F.S
- TC ZERO : ±0.02%/10°C
- TC SPAN :±0.02%/10°C
- Input resistance : 750±10Ω
- Output resistance : 702±3Ω
- Insulation resistance : ≥5000MΩ
- Temperature, compensated : -10°C~+40°C
- Temperature, operating : -30°C~+70°C
- Maximum safe overload : 120%F.S
- Ultimated overload : 200%F.S
- Exication, recommended : 10-20V DC
- Excitation, maximum : 15V DC
- Protection class : IP68
- Construction : Alloy steel
- Cable : length : 16m
diameter : 6mm
Kami PASTI MEMBERIKAN DISCOUNT & GARANSI 1 Tahun.
BUKTIKAN !!!!!!!!!!!!!!!!!!!!!!!!!!!!
Kami melayani Penjualan timbangan Mekanik, Digital, Service, Kalibrasi,Tera,Tera Ulang dari Dinas Metrologi (Sertifikasi) berbagai Merk Timbangan dari Jembatan Timbang sampai Analytical.
Produk kami berupa timbangan Mekanik, Timbangan Digital mulai dari analytical balances s/d Truck scale, Sparepart, Indicator, Load cell, Accesories timbangan, Batu Timbangan / Batu standart & Timbangan Lainnya.
Untuk memenuhi kebutuhan dan menemukan solusi timbangan anda segera hubungi kami :
CV.GARUDA MAS JAYA
Jl.Pedongkelan Belakang No.09B Cengkareng JAKARTA BARAT 11720
Nomer HP:
0813.8031.4948 WA
0878.0433.9042 WA
Nomer Telpon:
021.2902.4484
Nomer Faks:
021.29024484
E-mail : cvgmj123@yahoo.com
