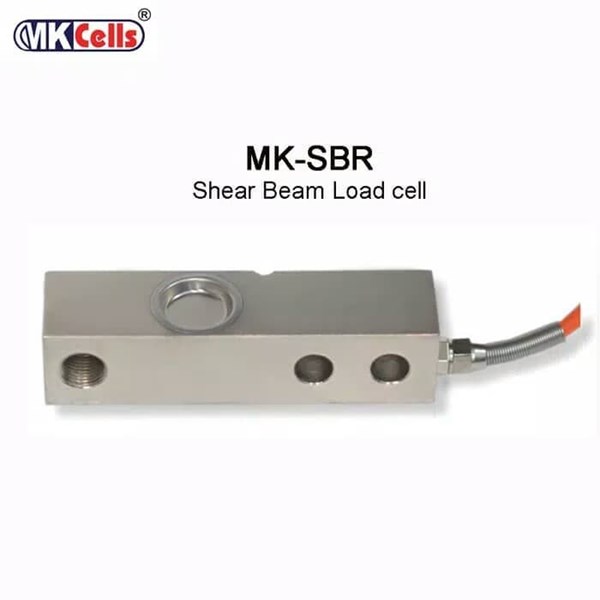

MKCells MK-SBR
SPECIFICATIONS :
Merk : MKCELLS
Type : SBR
Model : SHEAR BEAM
Rated Capacities (Emax) 1, 1.5, 2, 2.5t Temperature, Operating -30°C ~ +70°C
Rated Output 3.0 ± 0.003mV/V Maximum Safe Overload 150% FS
Total Error ± 0.03% FS Ultimate Overload 250% FS
Creep Error (30 min) ± 0.02% FS Excitation, Recommended 10 ~ 12V DC
Zero Balance ± 1% FS Excitation, Maximum 15V DC
TC Zero ± 0.02% FS/10°C Protection Class IP68
TC Span ± 0.02% FS/10°C Contruction Nickel plated steel
Input Resistance 400 ± 10Ω Cable Length : 3m
Output Resistance 352 ± 3Ω Diameter : Φ 6mm
Insulation Resistance ≥ 5000MΩ
FEATURES : MKCELLS MK-SBR LOAD CELL
Heavy duty shear beam load cell Nickel plated steel with anti corrosive
Bigger use for forklift, pallet, low platform scale Can use for silo, hopper, low platform scale
5 core high quality orange cable
Kami PASTI MEMBERIKAN GARANSI.
BUKTIKAN !!!!!!!!!!!!!!!!!!!!!!!!!!!!
Kami melayani Penjualan timbangan Mekanik, Digital, Service, Kalibrasi,Tera,Tera Ulang dari Dinas Metrologi (Sertifikasi) berbagai Merk Timbangan dari Jembatan Timbang sampai Analytical.
Produk kami berupa timbangan Mekanik, Timbangan Digital mulai dari analytical balances s/d Truck scale, Sparepart, Accesories timbangan, Batu Timbangan / Batu standart & Timbangan Lainnya.
Untuk memenuhi kebutuhan dan menemukan solusi timbangan anda segera hubungi kami :
CV.GARUDA MAS JAYA
Jl.Pedongkelan Belakang No.09B Cengkareng JAKARTA BARAT 11720
Nomer HP:
0813.8031.4948 WA
0878.0433.9042 WA
Nomer Telpon:
021.2902.4484
Nomer Faks:
021.29024484
E-mail : cvgmj123@yahoo.com
