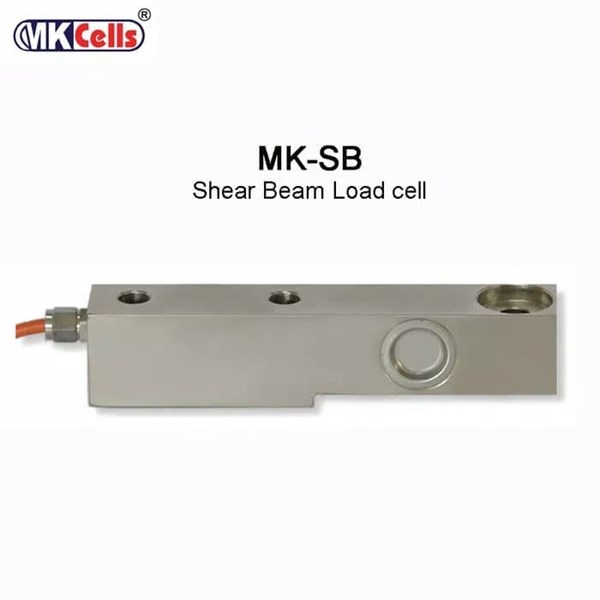

MKCells MK-SB
SPECIFICATIONS :
Merk : MKCELLS
Type : MK-SB
Model : Shear Beam
Rated Capacities (Emax) 0.3, 0.5, 1, 2, 3, 5, 7.5, 8, 10, 15, 20, 25t Temperature, Compensated -10°C ~ +40°C
Rated Output 2.0 ± 0.002mV/V Temperature, Operating -30°C ~ +70°C
Accuracy Class C3 Maximum Safe Overload 150% FS
Zero Balance ± 1% FS Ultimate Overload 250% FS
TC Zero ± 0.02% FS/10°C Excitation, Recommended 10 ~ 12V DC
TC Span ± 0.02% FS/10°C Excitation, Maximum 15V DC
Input Resistance 400 ± 20Ω Protection Class IP68
Output Resistance 352 ± 3Ω Contruction Nickel plated steel
Insulation Resistance ≥ 5000MΩ Cable Length : 2.6m (0.3-2t), 3.5m (3t), 5.2m (5-8t), 7m (10t), 12m (15-25t)
Diameter : Φ 5mm (0.3-8t), Φ 6mm (10-25t)
FEATURES : MKCELLS MK-SB LOAD CELL
Heavy duty shear beam load cell Nickel plated steel with anti corrosive
Smaller foot for special application Can use for silo, hopper, low platform scale
5 core high quality orange cable
