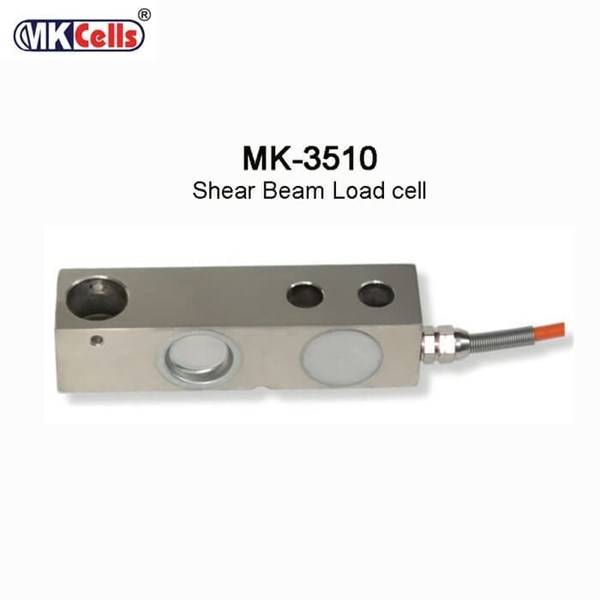

MKCells MK-3510
SPECIFICATIONS :
MERK : MKCELLS
TYPE : MK-3510
MODEL : SHEAR BEAM
Rated Capacities (Emax) 1, 1.2, 2, 2.5, 3, 5t Temperature, Compensated -10°C ~ +40°C
Rated Output 3.0 ± 0.003mV/V Temperature, Operating -30°C ~ +70°C
Total Error ± 0.05% FS Maximum Safe Overload 150% FS
Creep Error (30 min) ± 0.02% FS, ± 0.03% FS Ultimate Overload 200% FS
Zero Balance ± 1% FS Excitation, Recommended 10 ~ 12V DC
TC Zero ± 0.02% FS/10°C Excitation, Maximum 15V DC
TC Span ± 0.02% FS/10°C Protection Class IP68
Input Resistance 400 ± 20W Contruction Nickel plated steel
Output Resistance 352 ± 3W Cable Length : 5m
Insulation Resistance ≥ 5000MW Diameter : Φ 6mm
FEATURES : MKCELLS MK-3510
High quality shear beam load cell Nickel plated steel with anti corrosive
Wider mounting foot for special application Can use for forklift, pallet, low platform scale
5 core high quality orange cable
