Spesifikasi Loadcell MKCELL type MK LS - Murah

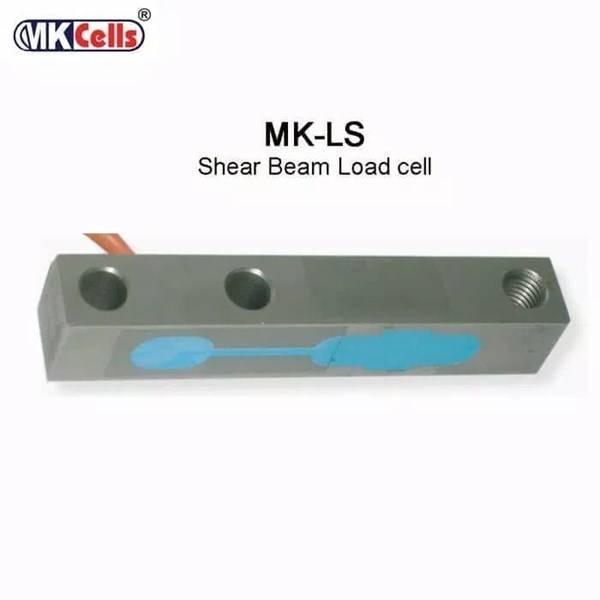

MKCells MK-LS
|
SPECIFICATIONS : Merk : MKCELLS Type : MK-LS Model : SHEAR BEAM |
|||
| Rated Capacities (Emax) | 50, 100, 150, 200, 500kg, 1.5t | Temperature, Compensated | -20°C ~ +40°C |
| Rated Output | 1.6 ± 0.002mV/V (50kg), 1.9 ± 0.002mV/V (150kg), 2.0 ± 0.002mV/V | Temperature, Operating | -40°C ~ +70°C |
| Total Error | ± 0.03% FS, ± 0.05% FS | Maximum Safe Overload | 150% FS |
| Creep Error (30 min) | ± 0.02% FS, ± 0.03% FS | Ultimate Overload | 200% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.02% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.02% FS/10°C | Protection Class | IP67 (50kg-1t), IP68 (5t) |
| Input Resistance | 400 ± 10Ω | Contruction | Nickel plated steel |
| Output Resistance | 352 ± 3Ω | Cable | Length : 3m (50kg-1t), 5m (5t) |
| Insulation Resistance | ≥ 5000MW | Diameter : Φ 5mm (50kg-1t), Φ 6mm (5t), | |
|
FEATURES : MKCELLS MK-LS LOAD CELL |
|
| Low profile shear beam | Small to high capacity available |
| Nickel plated steel with anti corrosive | Easy installation |
| 5 core high quality orange cable | |
Kami PASTI MEMBERIKAN GARANSI.
BUKTIKAN !!!!!!!!!!!!!!!!!!!!!!!!!!!!
Kami melayani Penjualan timbangan Mekanik, Digital, Service, Kalibrasi,Tera,Tera Ulang dari Dinas Metrologi (Sertifikasi) berbagai Merk Timbangan dari Jembatan Timbang sampai Analytical.
Produk kami berupa timbangan Mekanik, Timbangan Digital mulai dari analytical balances s/d Truck scale, Sparepart, Accesories timbangan, Batu Timbangan / Batu standart & Timbangan Lainnya.
Untuk memenuhi kebutuhan dan menemukan solusi timbangan anda segera hubungi kami :
CV.GARUDA MAS JAYA
Jl.Pedongkelan Belakang No.09B Cengkareng JAKARTA BARAT 11720
Nomer HP:
0813.8031.4948 WA
0878.0433.9042 WA
Nomer Telpon:
021.2902.4484
Nomer Faks:
021.29024484
E-mail : cvgmj123@yahoo.com
