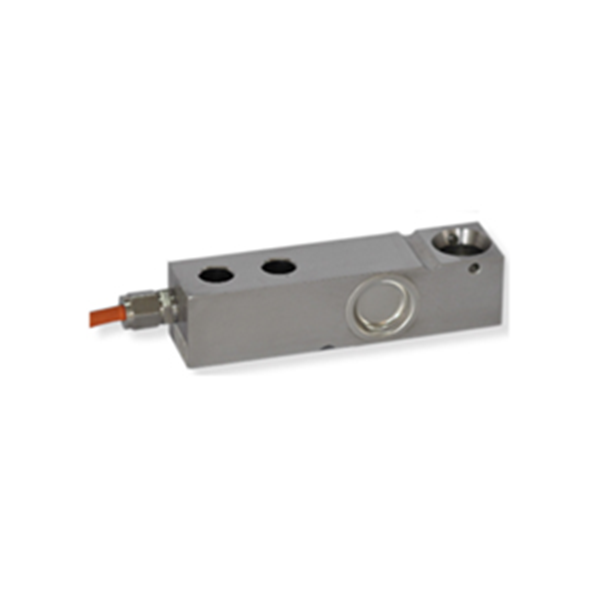

MKCells MK-BS
SPECIFICATIONS :
Merk : MKCELLS
Type : MK-BS
Model : SHEAR BEAM
Rated Capacities (Emax) 0.5, 1, 2t Temperature, Compensated -10°C ~ +40°C
Rated Output 2.0 ± 0.002mV/V Temperature, Operating -30°C ~ +70°C
Total Error ± 0.05% FS Maximum Safe Overload 150% FS
Creep Error (30 min) ± 0.02% FS, ± 0.03% FS Ultimate Overload 180% FS
Zero Balance ± 1% FS Excitation, Recommended 10 ~ 12V DC
TC Zero ± 0.02% FS/10°C Excitation, Maximum 15V DC
TC Span ± 0.02% FS/10°C Protection Class 1P68
Input Resistance 400 ± 20Ω Contruction Nickel plated steel
Output Resistance 352 ± 3Ω Cable Length : 3m
Insulation Resistance ≥ 5000MΩ Diameter : Φ 6mm
FEATURES : MKCELLS MK-BS LOAD CELL
High accuracy shear beam load cell Multi function load cell with many application
Suitable for foklift, platform, and high capacity axle High quality nickel plated steel
5 core high quality orange cable Easy installation
Kami PASTI MEMBERIKAN GARANSI.
BUKTIKAN !!!!!!!!!!!!!!!!!!!!!!!!!!!!
Kami melayani Penjualan timbangan Mekanik, Digital, Service, Kalibrasi,Tera,Tera Ulang dari Dinas Metrologi (Sertifikasi) berbagai Merk Timbangan dari Jembatan Timbang sampai Analytical.
Produk kami berupa timbangan Mekanik, Timbangan Digital mulai dari analytical balances s/d Truck scale, Sparepart, Accesories timbangan, Batu Timbangan / Batu standart & Timbangan Lainnya.
