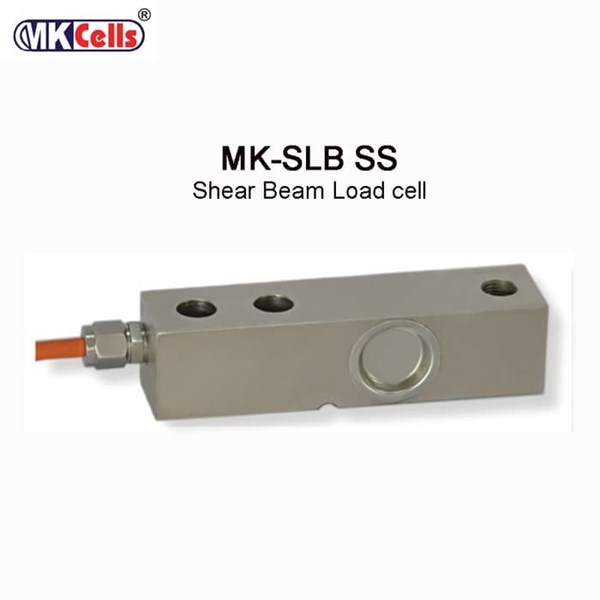

MKCells MK-SLB SS
SPECIFICATIONS :
Merk : MKCELLS
Type : MK-SLB SS
MODEL : SHEAR BEAM
Rated Capacities (Emax) 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t Temperature, Compensated -10°C ~ +40°C
Rated Output 3.0 ± 0.003mV/V (0.5-10t), 2.0 ± 0.002mV/V (0.25-0.3t) Temperature, Operating -30°C ~ +70°C
Accuracy Class C5 Maximum Safe Overload 150% FS
Zero Balance ± 1% FS Ultimate Overload 180% FS
TC Zero ± 0.02% FS/10°C Excitation, Recommended 10 ~ 12V DC
TC Span ± 0.02% FS/10°C Excitation, Maximum 15V DC
Input Resistance 400 ± 20Ω Protection Class IP67 (0.2-0.75t), IP68 (1-10t)
Output Resistance 352 ± 3Ω Contruction Stainless steel
Insulation Resistance ≥ 5000MΩ Cable Length : 3m (0.25-2.5t), 4.2m (3-5t), 5m (7.5-10t)
Diameter : Φ 5mm (0.25-5t, 0.25-0.3t), Φ 6mm (7.5-10t, 0.5-10t)
FEATURES : MKCELLS MK-SLB SS LOAD CELL
High quality shear beam load cell Stainless steel with anti corrosive
Standart leveling foot for universal application Can use for silo, hopper, low platform scale
5 core high quality orange cable
